15RPM 200L Three Dimensional Mixer For Dry Jelly Powder
Datos del producto:
| Lugar de origen: | Origen de China |
| Nombre de la marca: | HSD |
| Certificación: | CE/SGS/UL/ISO |
| Número de modelo: | HD-200 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 sistema |
|---|---|
| Precio: | USD 4000-30000 PIECES |
| Detalles de empaquetado: | El estándar exportó la caja de madera para el envío largo y seguro del mar |
| Tiempo de entrega: | 30 días laborables |
| Condiciones de pago: | T/T, L/C |
| Capacidad de la fuente: | 200 PEDAZOS POR AÑO |
|
Información detallada |
|||
| Material: | SUS304 y SS316L | Seguridad: | GMP y dispositivo de seguridad confiable |
|---|---|---|---|
| Polaco: | Gran espejo que pule, ninguna esquina muerta | limpieza: | Fácil para limpiar |
| Controlar: | fácil para que trabajadores controlen | Manija: | fácil para dirigir y actuar |
| descarga: | Sigue habiendo la gran descarga, ninguna | ||
| Alta luz: | 200L Three Dimensional Mixer,15RPM Three Dimensional Mixer,2.5kw |
||
Descripción de producto
15RPM 200L Three Dimensional Mixer For Dry Jelly Powder
Dry Food jelly Powder Mixing Blending Machine From China Supplier With GMP Stainless Steel
Application
This machine is widely applied for the mixing of powder material in pharmacy, chemical, and foodstuff industries, as well as for the quick and even mixing of various materials in different granules size and specific gravity.
Work Principle
The barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensions and complex movements along the barrel body so as to realize the various movements of the materials. Through disseminating, gathering, agglomerating and mixing to realize uniform mixing.
Features
1. The mixing barrel of the machine moves in multi-direction. For the materials,there is no centrifugal function, without the specic gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is high. The machine is the desired one of various mixers at present.
2. The material charge rate of barrel is big. Maximum rate can be up to 90% (while normal mixer has only 40-50% of charge rate.). It is high in ef ciency and short in mixing time.
3. The barrel adopts arc shape connections and its well polished.
4. The machine is used for mixing the powder state and grain state materials to achieve high uniformity in the pharmaceutical, chemical, food, light-industry , electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes.
Technical Parameters
| Spec | HD-5 | HD-15 | HD-50 | HD-100 | HD-200 | HD-400 | HD-600 | HD-800 | HD-1000 | HD-1200 | HD-1500 | HD-2000 |
| Volume of barrel (L) | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
| Charge volume (L) | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 720 | 900 | 1080 | 1350 | 1800 |
| Charge weight (kg) | 1.5-2.7 | 4-8.1 | 15-27 | 30-54 | 50-108 | 100-216 | 150-324 | 200-432 | 250-540 | 300-648 | 400-810 | 500-1080 |
| Rotation speed of main shaft (r/min) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-13 | 0-10 | 0-10 | 0-9 | 0-9 | 0-8 |
| Motor power (kw) | 0.25 | 0.37 | 1.1 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
| L×W×H (mm) | 600 ×1000 ×1000 |
800 ×1200 ×1000 |
1150 ×1400 ×1000 |
1250 ×1800 ×1550 |
1450 ×2000 ×1550 |
1650 ×2200 ×1550 |
1850 ×2500 ×1750 |
2100 ×2650 ×2000 |
2150 ×2800 ×2100 |
2000 ×3000 ×2260 |
2300 ×3200 ×2500 |
2500 ×3500 ×2800 |
| Weight (kg) | 100 | 200 | 300 | 800 | 1200 | 1200 | 1500 | 1700 | 1800 | 2000 | 2400 | 3000 |

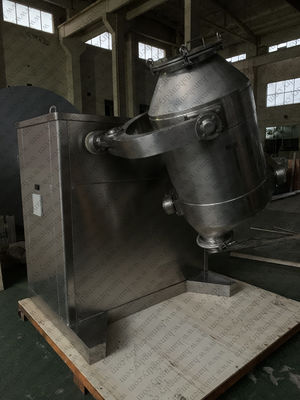

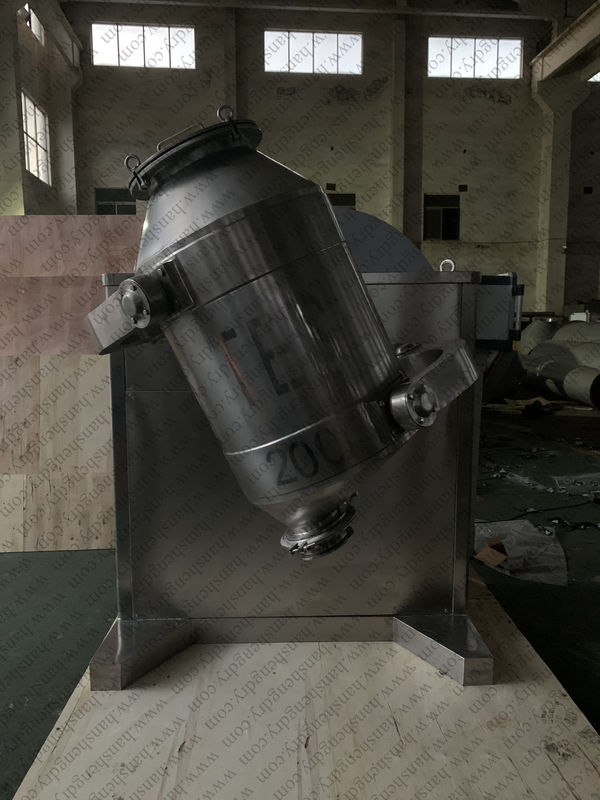

Machine parts pictures
Notes: this is our specifical place of HD mixer. Please check our main driving shaft and driven shaft, It is not in same level and this different structure helps to better discharge and no remians.
FAT and SAT
Service Flow
pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
after-sale service
We provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.
FAQ:
1. Q: Please describe your warranty period.
A: 15 months after the equipment is arrived at the destination port or 12 months after the installation and commissioning of the equipment, whichever comes first.
2. Q: Do you provide on-site installation and commissioning?
A: Yes, we do. If on request, we'll provide the guidance of on-site installation and commissioning. Usually one mechanical engineer and one electrical engineer to assist.
3. Q: How about the cost of on-site installation and commissioning guidance?
A: The cost consists of round-trip air tickets, room and board expenses, service cost (labor cost), and site transportation (or directly provided by client), which shall be paid additionally.
4. Q: Are you a factory or a trading company?
A: We are a professional manufacturer. We have own factory and pilot plant for customers to do sample testing.
